TEveProjectable Class Referenceabstract
Graphics » 3D Graphics » Event Display

Abstract base-class for non-linear projectable objects.

Via ProjectedClass(const TEveProjection* p) method it returns a TClass instance for the projected class and keeps references to the projected objects.

It is assumed that all classes deriving from TEveProjectable are also derived from TEveElement.

See also TEveProjectionManager::ImportElements().

Definition at line 34 of file TEveProjectionBases.h.

Public Types

typedef std::list< TEveProjected * >::iterator ProjList_i
typedef std::list< TEveProjected * > ProjList_t

Public Member Functions

 TEveProjectable ()
 Constructor.
virtual ~TEveProjectable ()
 Destructor.
virtual void AddProjected (TEveProjected *p)
virtual void AddProjectedsToSet (std::set< TEveElement * > &set)
 Add the projected elements to the set, dyn-casting them to TEveElement.
virtual void AnnihilateProjecteds ()
 Optimized destroy of projected elements with condition there is only one parent for projected element.
ProjList_i BeginProjecteds ()
virtual void ClearProjectedList ()
ProjList_i EndProjecteds ()
virtual Bool_t HasProjecteds () const
virtual TClass * IsA () const
virtual TClass * ProjectedClass (const TEveProjection *p) const =0
virtual void PropagateMainColor (Color_t color, Color_t old_color)
 Set main color of projecteds if their color is the same as old_color.
virtual void PropagateMainTransparency (Char_t t, Char_t old_t)
 Set main transparency of projecteds if their transparency is the same as the old one.
virtual void PropagateRenderState (Bool_t rnr_self, Bool_t rnr_children)
 Set render state of projecteds.
virtual void PropagateVizParams (TEveElement *el=nullptr)
 Set visualization parameters of projecteds.
virtual void RemoveProjected (TEveProjected *p)
virtual void Streamer (TBuffer &)
void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions

static TClass * Class ()
static const char * Class_Name ()
static constexpr Version_t Class_Version ()
static const char * DeclFileName ()

Protected Attributes

ProjList_t fProjectedList

Private Member Functions

 TEveProjectable (const TEveProjectable &)
TEveProjectable & operator= (const TEveProjectable &)

#include <TEveProjectionBases.h>

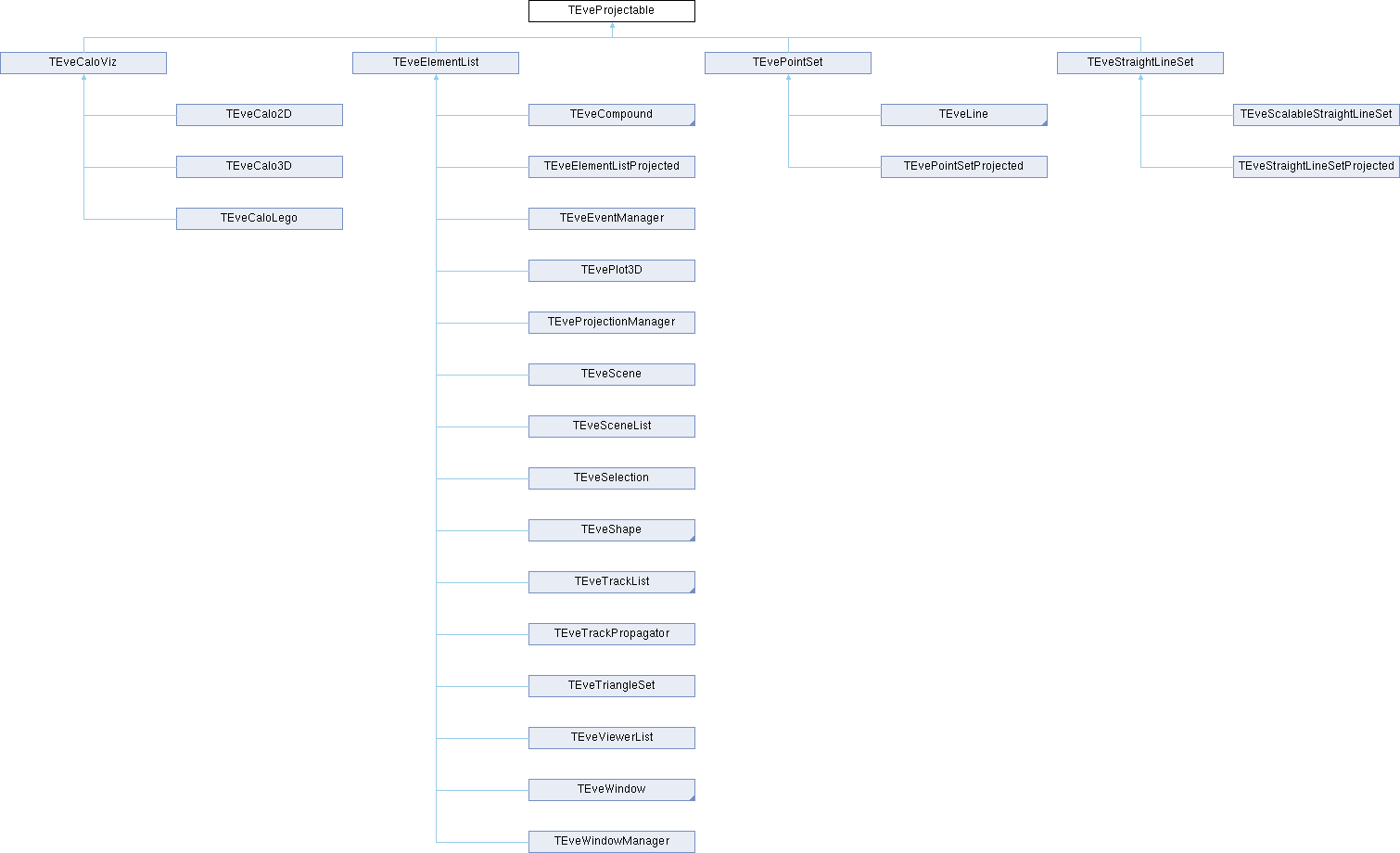

Inheritance diagram for TEveProjectable:
TEveCaloViz TEveElementList TEvePointSet TEveStraightLineSet TEveCalo2D TEveCalo3D TEveCaloLego TEveCompound TEveElementListProjected TEveEventManager TEvePlot3D TEveProjectionManager TEveScene TEveSceneList TEveSelection TEveShape TEveTrackList TEveTrackPropagator TEveTriangleSet TEveViewerList TEveWindow TEveWindowManager TEveLine TEvePointSetProjected TEveScalableStraightLineSet TEveStraightLineSetProjected

Member Typedef Documentation

◆ ProjList_i

typedef std::list<TEveProjected*>::iterator TEveProjectable::ProjList_i

Definition at line 42 of file TEveProjectionBases.h.

◆ ProjList_t

typedef std::list<TEveProjected*> TEveProjectable::ProjList_t

Definition at line 41 of file TEveProjectionBases.h.

Constructor & Destructor Documentation

◆ TEveProjectable() [1/2]

TEveProjectable::TEveProjectable ( const TEveProjectable & )
private

◆ TEveProjectable() [2/2]

TEveProjectable::TEveProjectable ( )

Constructor.

Definition at line 36 of file TEveProjectionBases.cxx.

◆ ~TEveProjectable()

TEveProjectable::~TEveProjectable ( )
virtual

Destructor.

Force projected replicas to unreference *this, then destroy them.

Definition at line 44 of file TEveProjectionBases.cxx.

Member Function Documentation

◆ AddProjected()

virtual void TEveProjectable::AddProjected ( TEveProjected * p)
inlinevirtual

Definition at line 58 of file TEveProjectionBases.h.

◆ AddProjectedsToSet()

void TEveProjectable::AddProjectedsToSet ( std::set< TEveElement * > & set)
virtual

Add the projected elements to the set, dyn-casting them to TEveElement.

Definition at line 85 of file TEveProjectionBases.cxx.

◆ AnnihilateProjecteds()

void TEveProjectable::AnnihilateProjecteds ( )
virtual

Optimized destroy of projected elements with condition there is only one parent for projected element.

Method is called from TEveElement::Annihilate().

Definition at line 64 of file TEveProjectionBases.cxx.

◆ BeginProjecteds()

ProjList_i TEveProjectable::BeginProjecteds ( )
inline

Definition at line 55 of file TEveProjectionBases.h.

◆ Class()

TClass * TEveProjectable::Class ( )
static
Returns
TClass describing this class

◆ Class_Name()

const char * TEveProjectable::Class_Name ( )
static
Returns
Name of this class

◆ Class_Version()

constexpr Version_t TEveProjectable::Class_Version ( )
inlinestaticconstexpr
Returns
Version of this class

Definition at line 71 of file TEveProjectionBases.h.

◆ ClearProjectedList()

void TEveProjectable::ClearProjectedList ( )
virtual

Definition at line 76 of file TEveProjectionBases.cxx.

◆ DeclFileName()

const char * TEveProjectable::DeclFileName ( )
inlinestatic
Returns
Name of the file containing the class declaration

Definition at line 71 of file TEveProjectionBases.h.

◆ EndProjecteds()

ProjList_i TEveProjectable::EndProjecteds ( )
inline

Definition at line 56 of file TEveProjectionBases.h.

◆ HasProjecteds()

virtual Bool_t TEveProjectable::HasProjecteds ( ) const
inlinevirtual

Definition at line 53 of file TEveProjectionBases.h.

◆ IsA()

virtual TClass * TEveProjectable::IsA ( ) const
inlinevirtual
Returns
TClass describing current object

Reimplemented in TEveBox, TEveBoxProjected, TEveCalo2D, TEveCalo3D, TEveCaloLego, TEveCaloViz, TEveCompound, TEveCompoundProjected, TEveElementList, TEveElementListProjected, TEveEventManager, TEveGeoShape, TEveGeoShapeProjected, TEveJetCone, TEveJetConeProjected, TEveLine, TEveLineProjected, TEvePlot3D, TEvePointSet, TEvePointSetProjected, TEvePolygonSetProjected, TEveProjectionManager, TEveScalableStraightLineSet, TEveScene, TEveSceneList, TEveSelection, TEveShape, TEveStraightLineSet, TEveStraightLineSetProjected, TEveTrack, TEveTrackList, TEveTrackListProjected, TEveTrackProjected, TEveTrackPropagator, TEveTriangleSet, TEveViewer, TEveViewerList, TEveWindow, TEveWindowFrame, TEveWindowManager, TEveWindowPack, TEveWindowSlot, and TEveWindowTab.

Definition at line 71 of file TEveProjectionBases.h.

◆ operator=()

TEveProjectable & TEveProjectable::operator= ( const TEveProjectable & )
private

◆ ProjectedClass()

virtual TClass * TEveProjectable::ProjectedClass ( const TEveProjection * p) const
pure virtual

Implemented in TEveBox, TEveCaloViz, TEveCompound, TEveElementList, TEveGeoShape, TEveJetCone, TEveLine, TEvePointSet, TEveStraightLineSet, TEveTrack, and TEveTrackList.

◆ PropagateMainColor()

void TEveProjectable::PropagateMainColor ( Color_t color,
Color_t old_color )
virtual

Set main color of projecteds if their color is the same as old_color.

Definition at line 124 of file TEveProjectionBases.cxx.

◆ PropagateMainTransparency()

void TEveProjectable::PropagateMainTransparency ( Char_t t,
Char_t old_t )
virtual

Set main transparency of projecteds if their transparency is the same as the old one.

Definition at line 137 of file TEveProjectionBases.cxx.

◆ PropagateRenderState()

void TEveProjectable::PropagateRenderState ( Bool_t rnr_self,
Bool_t rnr_children )
virtual

Set render state of projecteds.

Definition at line 112 of file TEveProjectionBases.cxx.

◆ PropagateVizParams()

void TEveProjectable::PropagateVizParams ( TEveElement * el = nullptr)
virtual

Set visualization parameters of projecteds.

Use element el as model. If el == 0 (default), this casted to TEveElement is used.

Definition at line 98 of file TEveProjectionBases.cxx.

◆ RemoveProjected()

virtual void TEveProjectable::RemoveProjected ( TEveProjected * p)
inlinevirtual

Definition at line 59 of file TEveProjectionBases.h.

◆ Streamer()

virtual void TEveProjectable::Streamer ( TBuffer & )
virtual

Reimplemented in TEveBox, TEveBoxProjected, TEveCalo2D, TEveCalo3D, TEveCaloLego, TEveCaloViz, TEveCompound, TEveCompoundProjected, TEveElementList, TEveElementListProjected, TEveEventManager, TEveGeoShape, TEveGeoShapeProjected, TEveJetCone, TEveJetConeProjected, TEveLine, TEveLineProjected, TEvePlot3D, TEvePointSet, TEvePointSetProjected, TEvePolygonSetProjected, TEveProjectionManager, TEveScalableStraightLineSet, TEveScene, TEveSceneList, TEveSelection, TEveShape, TEveStraightLineSet, TEveStraightLineSetProjected, TEveTrack, TEveTrackList, TEveTrackListProjected, TEveTrackProjected, TEveTrackPropagator, TEveTriangleSet, TEveViewer, TEveViewerList, TEveWindow, TEveWindowFrame, TEveWindowManager, TEveWindowPack, TEveWindowSlot, and TEveWindowTab.

◆ StreamerNVirtual()

void TEveProjectable::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b)
inline

Definition at line 71 of file TEveProjectionBases.h.

Member Data Documentation

◆ fProjectedList

ProjList_t TEveProjectable::fProjectedList
protected

Definition at line 45 of file TEveProjectionBases.h.

The documentation for this class was generated from the following files:
