template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>
class ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >

SmallVectorTemplateBase<TriviallyCopyable = false> - This is where we put method implementations that are designed to work with non-trivial T's.

We approximate is_trivially_copyable with trivial move/copy construction and trivial destruction. While the standard doesn't specify that you're allowed copy these types with memcpy, there is no way for the type to observe this. This catches the important case of std::pair<POD, POD>, which is not trivially assignable.

Definition at line 330 of file RVec.hxx.

Public Types
using	const_iterator = const T *
using	const_pointer = const T *
using	const_reference = const T &
using	const_reverse_iterator = std::reverse_iterator<const_iterator>
using	difference_type = ptrdiff_t
using	iterator = T *
using	pointer = T *
using	reference = T &
using	reverse_iterator = std::reverse_iterator<iterator>
using	Size_T = int32_t
using	size_type = size_t
using	value_type = T

Public Member Functions
reference	back ()
const_reference	back () const
const_iterator	begin () const noexcept
iterator	begin () noexcept
size_t	capacity () const noexcept
size_t	capacity_in_bytes () const
const_iterator	cbegin () const noexcept
const_iterator	cend () const noexcept
const_reverse_iterator	crbegin () const noexcept
const_reverse_iterator	crend () const noexcept
const_pointer	data () const noexcept
	Return a pointer to the vector's buffer, even if empty().
pointer	data () noexcept
	Return a pointer to the vector's buffer, even if empty().
bool	empty () const
const_iterator	end () const noexcept
iterator	end () noexcept
reference	front ()
const_reference	front () const
size_type	max_size () const noexcept
void	pop_back ()
void	push_back (const T &Elt)
void	push_back (T &&Elt)
const_reverse_iterator	rbegin () const noexcept
reverse_iterator	rbegin () noexcept
const_reverse_iterator	rend () const noexcept
reverse_iterator	rend () noexcept
void	set_size (size_t N)
	Set the array size to `N`, which the current array must have enough capacity for.
size_t	size () const
size_type	size_in_bytes () const

Protected Member Functions
	SmallVectorTemplateBase (size_t Size)
void	grow (size_t MinSize=0)
	Grow the allocated memory (without initializing new elements), doubling the size of the allocated memory.
void	grow_pod (void *FirstEl, size_t MinSize, size_t TSize)
	This is an implementation of the grow() method which only works on POD-like data types and is out of line to reduce code duplication.
void	grow_pod (size_t MinSize, size_t TSize)
bool	isSmall () const
	Return true if this is a smallvector which has not had dynamic memory allocated for it.
bool	Owns () const
	If false, the RVec is in "memory adoption" mode, i.e. it is acting as a view on a memory buffer it does not own.
void	resetToSmall ()
	Put this vector in a state of being small.

Static Protected Member Functions
static void	destroy_range (T S, T E)
static void	report_at_maximum_capacity ()
	Report that this vector is already at maximum capacity.
static void	report_size_overflow (size_t MinSize)
	Report that MinSize doesn't fit into this vector's size type.
static constexpr size_t	SizeTypeMax ()
	The maximum value of the Size_T used.
template<typename It1, typename It2>
static void	uninitialized_copy (It1 I, It1 E, It2 Dest)
	Copy the range [I, E) onto the uninitialized memory starting with "Dest", constructing elements as needed.
template<typename It1, typename It2>
static void	uninitialized_move (It1 I, It1 E, It2 Dest)
	Move the range [I, E) into the uninitialized memory starting with "Dest", constructing elements as needed.

Protected Attributes
void *	fBeginX
Size_T	fCapacity
	Always >= -1. fCapacity == -1 indicates the RVec is in "memory adoption" mode.
Size_T	fSize = 0
	Always >= 0.

Private Types
using	Base = SmallVectorBase

Private Member Functions
void *	getFirstEl () const
	Find the address of the first element.

#include <ROOT/RVec.hxx>

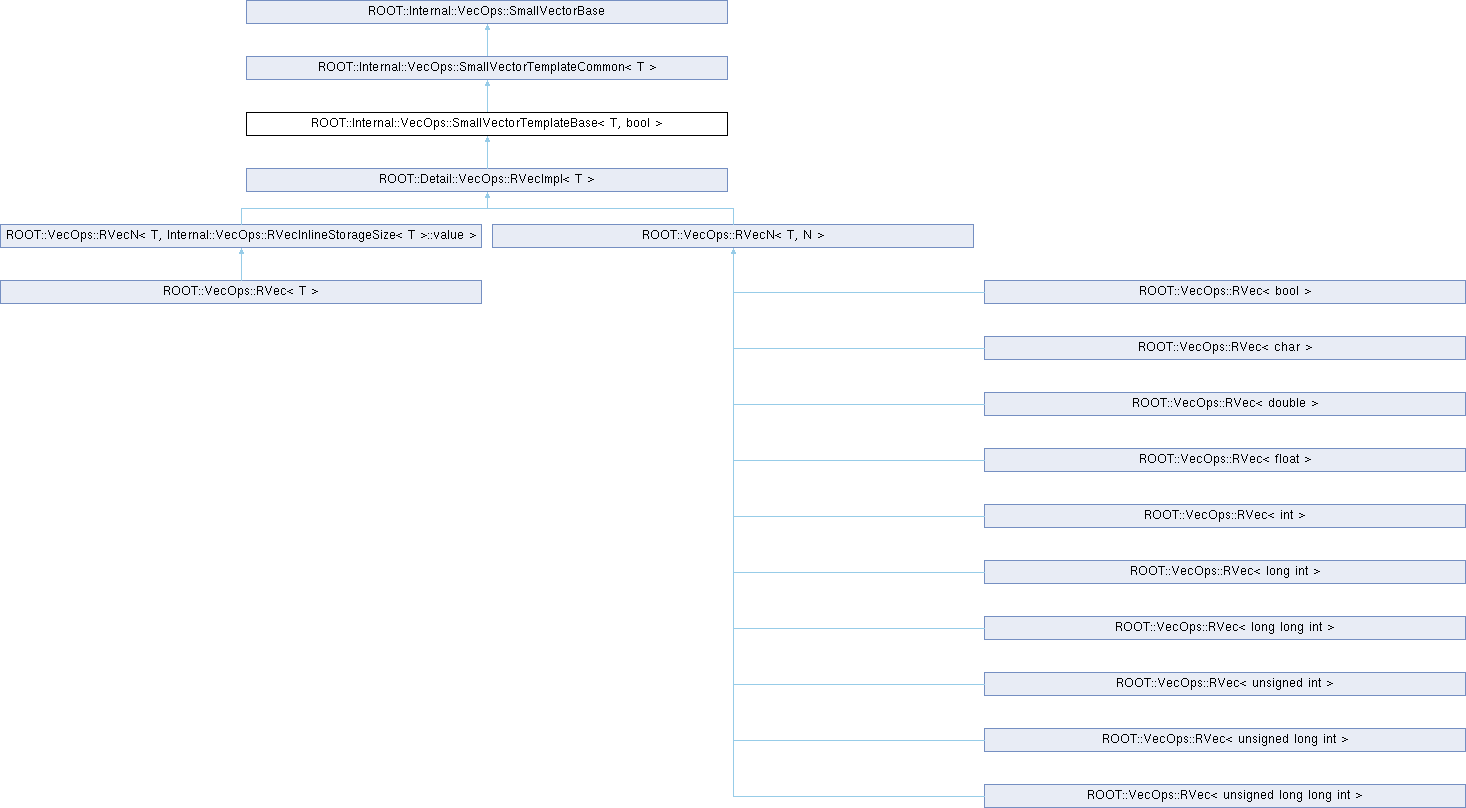

Inheritance diagram for ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >:

Member Typedef Documentation

◆ Base

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::Base = SmallVectorBase

privateinherited

Definition at line 209 of file RVec.hxx.

◆ const_iterator

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::const_iterator = const T *

inherited

Definition at line 246 of file RVec.hxx.

◆ const_pointer

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::const_pointer = const T *

inherited

Definition at line 254 of file RVec.hxx.

◆ const_reference

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::const_reference = const T &

inherited

Definition at line 252 of file RVec.hxx.

◆ const_reverse_iterator

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::const_reverse_iterator = std::reverse_iterator<const_iterator>

inherited

Definition at line 248 of file RVec.hxx.

◆ difference_type

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::difference_type = ptrdiff_t

inherited

Definition at line 243 of file RVec.hxx.

◆ iterator

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::iterator = T *

inherited

Definition at line 245 of file RVec.hxx.

◆ pointer

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::pointer = T *

inherited

Definition at line 253 of file RVec.hxx.

◆ reference

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::reference = T &

inherited

Definition at line 251 of file RVec.hxx.

◆ reverse_iterator

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::reverse_iterator = std::reverse_iterator<iterator>

inherited

Definition at line 249 of file RVec.hxx.

◆ Size_T

using ROOT::Internal::VecOps::SmallVectorBase::Size_T = int32_t

inherited

Definition at line 144 of file RVec.hxx.

◆ size_type

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::size_type = size_t

inherited

Definition at line 242 of file RVec.hxx.

◆ value_type

template<typename T>

using ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::value_type = T

inherited

Definition at line 244 of file RVec.hxx.

Constructor & Destructor Documentation

◆ SmallVectorTemplateBase()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::SmallVectorTemplateBase ( size_t Size )

inlineprotected

Definition at line 332 of file RVec.hxx.

Member Function Documentation

◆ back() [1/2]

template<typename T>

reference ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::back ( )

inlineinherited

Definition at line 302 of file RVec.hxx.

◆ back() [2/2]

template<typename T>

const_reference ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::back ( ) const

inlineinherited

Definition at line 310 of file RVec.hxx.

◆ begin() [1/2]

template<typename T>

const_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::begin ( ) const

inlinenoexceptinherited

Definition at line 262 of file RVec.hxx.

◆ begin() [2/2]

template<typename T>

iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::begin ( )

inlinenoexceptinherited

Definition at line 261 of file RVec.hxx.

◆ capacity()

template<typename T>

size_t ROOT::Internal::VecOps::SmallVectorBase::capacity ( ) const

inlinenoexceptinherited

Definition at line 177 of file RVec.hxx.

◆ capacity_in_bytes()

template<typename T>

size_t ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::capacity_in_bytes ( ) const

inlineinherited

Definition at line 279 of file RVec.hxx.

◆ cbegin()

template<typename T>

const_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::cbegin ( ) const

inlinenoexceptinherited

Definition at line 263 of file RVec.hxx.

◆ cend()

template<typename T>

const_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::cend ( ) const

inlinenoexceptinherited

Definition at line 266 of file RVec.hxx.

◆ crbegin()

template<typename T>

const_reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::crbegin ( ) const

inlinenoexceptinherited

Definition at line 271 of file RVec.hxx.

◆ crend()

template<typename T>

const_reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::crend ( ) const

inlinenoexceptinherited

Definition at line 274 of file RVec.hxx.

◆ data() [1/2]

template<typename T>

const_pointer ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::data ( ) const

inlinenoexceptinherited

Return a pointer to the vector's buffer, even if empty().

Definition at line 284 of file RVec.hxx.

◆ data() [2/2]

template<typename T>

pointer ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::data ( )

inlinenoexceptinherited

Return a pointer to the vector's buffer, even if empty().

Definition at line 282 of file RVec.hxx.

◆ destroy_range()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::destroy_range	(	T *	S,
		T *	E )

inlinestaticprotected

Definition at line 334 of file RVec.hxx.

◆ empty()

template<typename T>

bool ROOT::Internal::VecOps::SmallVectorBase::empty ( ) const

inlineinherited

Definition at line 179 of file RVec.hxx.

◆ end() [1/2]

template<typename T>

const_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::end ( ) const

inlinenoexceptinherited

Definition at line 265 of file RVec.hxx.

◆ end() [2/2]

template<typename T>

iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::end ( )

inlinenoexceptinherited

Definition at line 264 of file RVec.hxx.

◆ front() [1/2]

template<typename T>

reference ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::front ( )

inlineinherited

Definition at line 286 of file RVec.hxx.

◆ front() [2/2]

template<typename T>

const_reference ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::front ( ) const

inlineinherited

Definition at line 294 of file RVec.hxx.

◆ getFirstEl()

template<typename T>

void * ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::getFirstEl ( ) const

inlineprivateinherited

Find the address of the first element.

For this pointer math to be valid with small-size of 0 for T with lots of alignment, it's important that SmallVectorStorage is properly-aligned even for small-size of 0.

Definition at line 214 of file RVec.hxx.

◆ grow()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::grow ( size_t MinSize = 0 )

protected

Grow the allocated memory (without initializing new elements), doubling the size of the allocated memory.

Guarantees space for at least one more element, or MinSize more elements if specified.

◆ grow_pod() [1/2]

void ROOT::Internal::VecOps::SmallVectorBase::grow_pod	(	void *	FirstEl,
		size_t	MinSize,
		size_t	TSize )

protectedinherited

This is an implementation of the grow() method which only works on POD-like data types and is out of line to reduce code duplication.

This function will report a fatal error if it cannot increase capacity.

Definition at line 51 of file RVec.cxx.

◆ grow_pod() [2/2]

template<typename T>

void ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::grow_pod	(	size_t	MinSize,
		size_t	TSize )

inlineprotectedinherited

Definition at line 224 of file RVec.hxx.

◆ isSmall()

template<typename T>

bool ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::isSmall ( ) const

inlineprotectedinherited

Return true if this is a smallvector which has not had dynamic memory allocated for it.

Definition at line 228 of file RVec.hxx.

◆ max_size()

template<typename T>

size_type ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::max_size ( ) const

inlinenoexceptinherited

Definition at line 277 of file RVec.hxx.

◆ Owns()

bool ROOT::Internal::VecOps::SmallVectorBase::Owns ( ) const

inlineprotectedinherited

If false, the RVec is in "memory adoption" mode, i.e. it is acting as a view on a memory buffer it does not own.

Definition at line 173 of file RVec.hxx.

◆ pop_back()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::pop_back ( )

inline

Definition at line 380 of file RVec.hxx.

◆ push_back() [1/2]

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::push_back ( const T & Elt )

inline

Definition at line 364 of file RVec.hxx.

◆ push_back() [2/2]

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::push_back ( T && Elt )

inline

Definition at line 372 of file RVec.hxx.

◆ rbegin() [1/2]

template<typename T>

const_reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::rbegin ( ) const

inlinenoexceptinherited

Definition at line 270 of file RVec.hxx.

◆ rbegin() [2/2]

template<typename T>

reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::rbegin ( )

inlinenoexceptinherited

Definition at line 269 of file RVec.hxx.

◆ rend() [1/2]

template<typename T>

const_reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::rend ( ) const

inlinenoexceptinherited

Definition at line 273 of file RVec.hxx.

◆ rend() [2/2]

template<typename T>

reverse_iterator ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::rend ( )

inlinenoexceptinherited

Definition at line 272 of file RVec.hxx.

◆ report_at_maximum_capacity()

void ROOT::Internal::VecOps::SmallVectorBase::report_at_maximum_capacity ( )

staticprotectedinherited

Report that this vector is already at maximum capacity.

Throws std::length_error or calls report_fatal_error.

Definition at line 44 of file RVec.cxx.

◆ report_size_overflow()

void ROOT::Internal::VecOps::SmallVectorBase::report_size_overflow ( size_t MinSize )

staticprotectedinherited

Report that MinSize doesn't fit into this vector's size type.

Throws std::length_error or calls report_fatal_error.

Definition at line 37 of file RVec.cxx.

◆ resetToSmall()

template<typename T>

void ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::resetToSmall ( )

inlineprotectedinherited

Put this vector in a state of being small.

Definition at line 231 of file RVec.hxx.

◆ set_size()

void ROOT::Internal::VecOps::SmallVectorBase::set_size ( size_t N )

inlineinherited

Set the array size to N, which the current array must have enough capacity for.

This does not construct or destroy any elements in the vector.

Clients can use this in conjunction with capacity() to write past the end of the buffer when they know that more elements are available, and only update the size later. This avoids the cost of value initializing elements which will only be overwritten.

Definition at line 190 of file RVec.hxx.

◆ size()

template<typename T>

size_t ROOT::Internal::VecOps::SmallVectorBase::size ( ) const

inlineinherited

Definition at line 176 of file RVec.hxx.

◆ size_in_bytes()

template<typename T>

size_type ROOT::Internal::VecOps::SmallVectorTemplateCommon< T >::size_in_bytes ( ) const

inlineinherited

Definition at line 276 of file RVec.hxx.

◆ SizeTypeMax()

constexpr size_t ROOT::Internal::VecOps::SmallVectorBase::SizeTypeMax ( )

inlinestaticconstexprprotectedinherited

The maximum value of the Size_T used.

Definition at line 155 of file RVec.hxx.

◆ uninitialized_copy()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

template<typename It1, typename It2>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::uninitialized_copy	(	It1	I,
		It1	E,
		It2	Dest )

inlinestaticprotected

Copy the range [I, E) onto the uninitialized memory starting with "Dest", constructing elements as needed.

Definition at line 353 of file RVec.hxx.

◆ uninitialized_move()

template<typename T, bool = (std::is_trivially_copy_constructible<T>::value) && (std::is_trivially_move_constructible<T>::value) && std::is_trivially_destructible<T>::value>

template<typename It1, typename It2>

void ROOT::Internal::VecOps::SmallVectorTemplateBase< T, bool >::uninitialized_move	(	It1	I,
		It1	E,
		It2	Dest )

inlinestaticprotected

Move the range [I, E) into the uninitialized memory starting with "Dest", constructing elements as needed.

Definition at line 345 of file RVec.hxx.

Member Data Documentation

◆ fBeginX

void* ROOT::Internal::VecOps::SmallVectorBase::fBeginX

protectedinherited

Definition at line 147 of file RVec.hxx.

◆ fCapacity

Size_T ROOT::Internal::VecOps::SmallVectorBase::fCapacity

protectedinherited

Always >= -1. fCapacity == -1 indicates the RVec is in "memory adoption" mode.

Definition at line 152 of file RVec.hxx.

◆ fSize

Size_T ROOT::Internal::VecOps::SmallVectorBase::fSize = 0

protectedinherited

Always >= 0.

Definition at line 150 of file RVec.hxx.

The documentation for this class was generated from the following file:

math/vecops/inc/ROOT/RVec.hxx

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Member Typedef Documentation

◆ Base

◆ const_iterator

◆ const_pointer

◆ const_reference

◆ const_reverse_iterator

◆ difference_type

◆ iterator

◆ pointer

◆ reference

◆ reverse_iterator

◆ Size_T

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ SmallVectorTemplateBase()

Member Function Documentation

◆ back() [1/2]

◆ back() [2/2]

◆ begin() [1/2]

◆ begin() [2/2]

◆ capacity()

◆ capacity_in_bytes()

◆ cbegin()

◆ cend()

◆ crbegin()

◆ crend()

◆ data() [1/2]

◆ data() [2/2]

◆ destroy_range()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ front() [1/2]

◆ front() [2/2]

◆ getFirstEl()

◆ grow()

◆ grow_pod() [1/2]

◆ grow_pod() [2/2]

◆ isSmall()

◆ max_size()

◆ Owns()

◆ pop_back()

◆ push_back() [1/2]

◆ push_back() [2/2]

◆ rbegin() [1/2]

◆ rbegin() [2/2]

◆ rend() [1/2]

◆ rend() [2/2]

◆ report_at_maximum_capacity()

◆ report_size_overflow()

◆ resetToSmall()

◆ set_size()

◆ size()

◆ size_in_bytes()

◆ SizeTypeMax()

◆ uninitialized_copy()

◆ uninitialized_move()

Member Data Documentation

◆ fBeginX

◆ fCapacity

◆ fSize
