calo_detail.C File Reference

Detailed Description

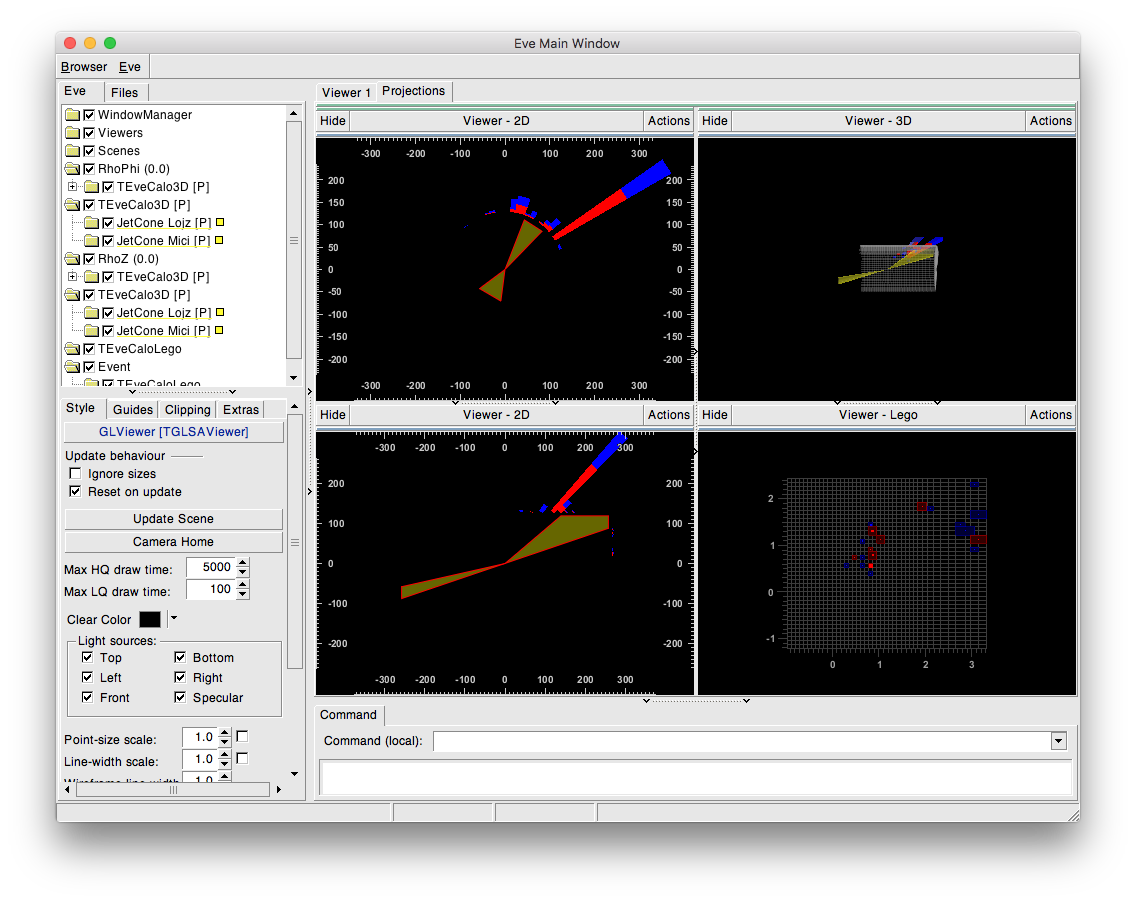

Calorimeter detailed view by using TEveCaloDataVec as data-source.

Demonstrates how to plot calorimeter data with irregular bins.


#include "calorimeters.C"

TEveCaloDataVec *MakeVecData(Int_t ncells = 0);

void calo_detail()
{
   TEveManager::Create();

   // data
   auto data = MakeVecData(20);
   data->IncDenyDestroy(); // don't delete if zero parent

   // frames
   auto slot = TEveWindow::CreateWindowInTab(gEve->GetBrowser()->GetTabRight());
   auto packH = slot->MakePack();
   packH->SetElementName("Projections");
   packH->SetHorizontal();
   packH->SetShowTitleBar(kFALSE);

   slot = packH->NewSlot();
   auto pack0 = slot->MakePack();
   pack0->SetShowTitleBar(kFALSE);
   auto slotLeftTop = pack0->NewSlot();
   auto slotLeftBottom = pack0->NewSlot();

   slot = packH->NewSlot();
   auto pack1 = slot->MakePack();
   pack1->SetShowTitleBar(kFALSE);
   auto slotRightTop = pack1->NewSlot();
   auto slotRightBottom = pack1->NewSlot();

   // viewers ans scenes in second tab
   Float_t maxH = 300;
   TEveCalo3D *calo3d = MakeCalo3D(data, slotRightTop);
   calo3d->SetMaxTowerH(maxH);

   TEveCalo2D *calo2d;
   calo2d = MakeCalo2D(calo3d, slotLeftTop, TEveProjection::kPT_RPhi);
   calo2d->SetMaxTowerH(maxH);
   calo2d = MakeCalo2D(calo3d, slotLeftBottom, TEveProjection::kPT_RhoZ);
   calo2d->SetMaxTowerH(maxH);

   TEveCaloLego *lego = MakeCaloLego(data, slotRightBottom);
   lego->SetAutoRebin(kFALSE);
   lego->Set2DMode(TEveCaloLego::kValSizeOutline);

   gEve->AddElement(lego);
   gEve->GetDefaultGLViewer()->SetCurrentCamera(TGLViewer::kCameraPerspXOY);

   gEve->GetBrowser()->GetTabRight()->SetTab(1);
   gEve->FullRedraw3D(kTRUE);
}

//______________________________________________________________________________
TEveCaloDataVec *MakeVecData(Int_t ncells)
{
   // Example how to fill data when bins can be irregular.
   // If ncells = 0 (default) whole histogram is taken,
   // otherwise just ncells cells around the maximum.

   TFile::SetCacheFileDir(".");
   auto hf = TFile::Open(histFile, "CACHEREAD");
   TH2F *h1 = (TH2F *)hf->Get("ecalLego");
   TH2F *h2 = (TH2F *)hf->Get("hcalLego");

   auto data = new TEveCaloDataVec(2);
   data->RefSliceInfo(0).Setup("ECAL", 0.3, kRed);
   data->RefSliceInfo(1).Setup("HCAL", 0.1, kBlue);

   auto ax = h1->GetXaxis();
   auto ay = h1->GetYaxis();

   Int_t xm = 1, xM = ax->GetNbins();
   Int_t ym = 1, yM = ay->GetNbins();
   if (ncells != 0) {
      Int_t cx, cy, cz;
      h1->GetMaximumBin(cx, cy, cz);
      xm = TMath::Max(xm, cx - ncells);
      xM = TMath::Min(xM, cx + ncells);
      ym = TMath::Max(ym, cy - ncells);
      yM = TMath::Min(yM, cy + ncells);
   }

   // Take every second cell and set a random size.
   for (Int_t i = xm; i <= xM; i += 2) {
      for (Int_t j = ym; j <= yM; j += 2) {
         if ((i + j) % 3) {
            data->AddTower(ax->GetBinLowEdge(i), ax->GetBinUpEdge(i), ay->GetBinLowEdge(j), ay->GetBinUpEdge(j));
            data->FillSlice(0, h1->GetBinContent(i, j));
            data->FillSlice(1, h2->GetBinContent(i, j));
         } else {
            data->AddTower(ax->GetBinLowEdge(i), 2 * ax->GetBinWidth(i) + ax->GetBinLowEdge(i), ay->GetBinLowEdge(j),
                           2 * ay->GetBinWidth(j) + ay->GetBinLowEdge(j));
            data->FillSlice(0, h2->GetBinContent(i, j));
            data->FillSlice(1, h2->GetBinContent(i, j));
         }
      }
   }

   data->SetEtaBins(ax);
   data->SetPhiBins(ay);
   data->DataChanged();
   return data;
}

Author

Alja Mrak-Tadel

Definition in file calo_detail.C.
