building.C File Reference
Tutorials » Visualisation tutorials » Geometry tutorials

Detailed Description

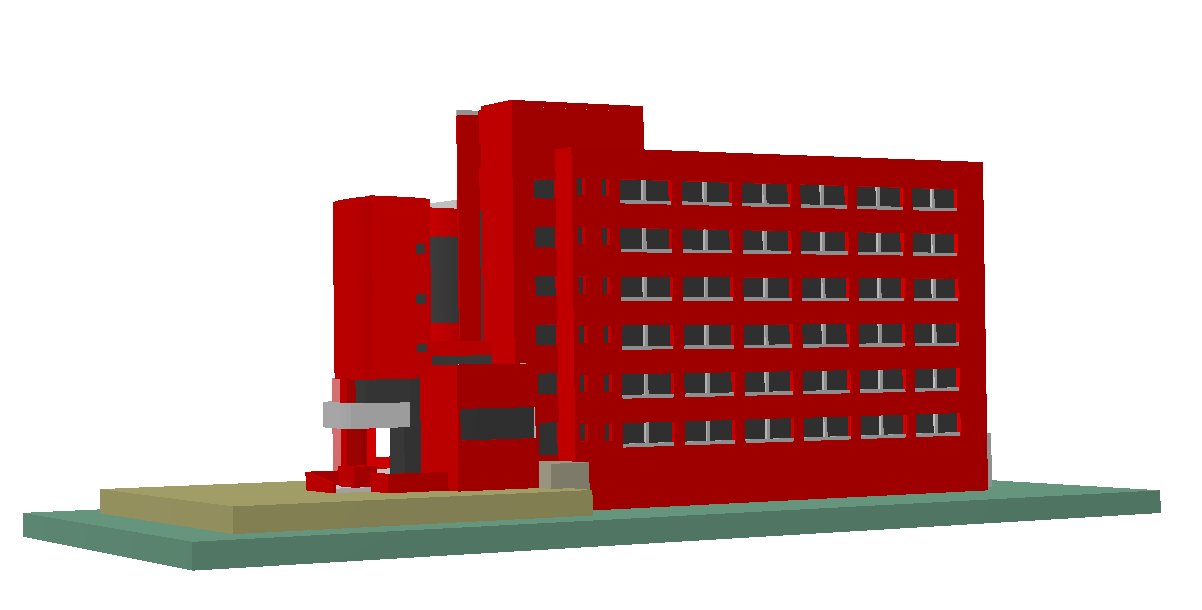

Drawing a building where Dept.

of Physics is, using ROOT geometry class.

Reviewed by Sunman Kim (sunma.nosp@m.n98@.nosp@m.hanma.nosp@m.il.n.nosp@m.et) Supervisor: Prof. Inkyu Park (icpar.nosp@m.k@ph.nosp@m.ysics.nosp@m..uos.nosp@m..ac.k.nosp@m.r)

How to run: .x building.C in ROOT terminal, then use OpenGL

This macro was created for the evaluation of Computational Physics course in 2006. We thank to Prof. Inkyu Park for his special lecture on ROOT and to all of ROOT team

#include "TGeoManager.h"
void building()
{
TGeoManager *geom = new TGeoManager("geom", "My First 3D Geometry");
// Materials
TGeoMaterial *Vacuum = new TGeoMaterial("vacuum", 0, 0, 0);
TGeoMaterial *Fe = new TGeoMaterial("Fe", 55.845, 26, 7.87);
// Media
TGeoMedium *Air = new TGeoMedium("Air", 0, Vacuum);
TGeoMedium *Iron = new TGeoMedium("Iron", 0, Fe);
// Volume
TGeoVolume *Phy_Building = geom->MakeBox("top", Air, 150, 150, 150);
geom->SetTopVolume(Phy_Building);
geom->SetTopVisible(false);
// If you want to see the boundary, please input the number, 1 instead of 0.
// Like this, geom->SetTopVisible(1);
TGeoVolume *mBlocks;
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// Front-Building ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
int i = 0;
int F = 0; // Floor
int N = 0; // Block_no
int nW = 8; // Number of windows
int nF = 3; // Number of Floor
char no_Block[100]; // Name of Block
double sP = 0; // Starting Phi of Tubs
double hP = 21; // Height of Tubs from Ground
while (F < nF) {
N = 0;
i = 0;
sP = 0;
/////////////////////////// Front of Building
while (i < nW) {
i++;
sprintf(no_Block, "B1_F%d_%d", F, ++N); // Windows (6.25)
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 29, 1.8, sP, sP + 6.25);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
if (i < nW) {
sprintf(no_Block, "B1_F%d_%d", F, ++N); // Walls (8)
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 1.8, sP, sP + 2.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 31, 1.8, sP, sP + 1);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 1.8, sP, sP + 1);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 31, 1.8, sP, sP + 1);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 1.8, sP, sP + 2.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
}
if (i >= nW) {
sprintf(no_Block, "B1_F%d_%d", F, ++N); // Walls
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 1.8, sP, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP + (8 * F)));
}
}
sprintf(no_Block, "B1_F%d", ++F); // No Windows Floor
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 2.2, 0, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 12 + (8 * F)));
///////////////////////////////////////// Back of Building
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.5, 21, 0.8, 92, 101);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 9.4 + (8 * F)));
if (F < nF) {
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.5, 21, 3.2, 92, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 5.4 + (8 * F)));
}
}
sprintf(no_Block, "B1_F%d_%d", F, ++N); // Walls
mBlocks = geom->MakeTubs(no_Block, Iron, 18.5, 21, 2, 92, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 4));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.5, 21, 3.2, 92, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 5.4 + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 2, 0, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 4.2 + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 21, 2, 0, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 4.2 + (8 * F)));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 18.5, 14, 92, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 29));
//////////////////////// Front of Building
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 29, 2, 0, 97);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 13));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 32, 2, 37, 97);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 9));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 29, 1.95, 0, 37);
mBlocks->SetLineColor(30);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 9.05));
sprintf(no_Block, "B1_F%d_%d", F, ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 29, 0.05, 0, 37);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 7.05));
//////////////////////// Rooftop
sprintf(no_Block, "B1_RT%d", N = 0);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 29.5, 0.2, 0, 102);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 2 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.5, 21, 0.2, 0, 101);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 2 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 30, 0.7, 102.9, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21.1, 29.9, 0.7, 102, 102.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21.1, 21.5, 0.5, 98, 102.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 21, 21.1, 0.7, 98, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.6, 21, 0.7, 101.9, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.6, 21, 0.7, 101, 101.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.8 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 29.5, 29.9, 0.5, 0, 102);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 29.9, 30, 0.5, 0, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.1, 18.5, 0.5, -1, 101.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 18.1, 0.5, -0.5, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.1, 18.4, 0.5, 101.9, 102.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 18.1, 0.5, 102, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18.4, 18.5, 0.5, 102, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
sprintf(no_Block, "B1_RT%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 18.5, 0.5, 102.9, 103);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, hP - 1.7 + (8 * F)));
/////////////////////////////// White Wall
sprintf(no_Block, "B1_WW%d", N = 0);
mBlocks = geom->MakeTubs(no_Block, Iron, 20.8, 31, 19.5, sP, sP + 1);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 26));
sprintf(no_Block, "B1_WW%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 26.8, 31, 5, sP, sP + 1);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 2));
sprintf(no_Block, "B1_WW%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 23, 24.3, 5, sP, sP + 1);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 2));
sprintf(no_Block, "B1_WW%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 20.8, 21.3, 5, sP, sP + 1);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 2));
////////////////////////// Zero Floor1
sprintf(no_Block, "B1_ZF%d", N = 0);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 21, 9, 0, 92);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 6));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 21, 7.5, 0, 92);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 31.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 18, 21, 4.5, 0, 92);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 19.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 18, 0.2, 0, 101);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 18.6));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 18, 1.7, 0, 100);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 16.7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 18, 1.2, 101, 101.9);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 19.6));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 18, 1.2, 101.9, 102);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, 19.6));
////////////////////////// Zero Floor2
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.5, 7, 2.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 10.75, 13));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.5, 7, 3);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 10.75, 7.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.05, 10);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 17.95, 7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.9, 0.20, 10);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 17.70, 7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.1, 0.20, 10);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-13.9, 17.70, 7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.05, 7, 3.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-13.95, 10.5, 13.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.20, 6.9, 3.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-13.70, 10.5, 13.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.25, 7, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-13.75, 10.5, 1));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.05, 10);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 3.55, 7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.9, 0.20, 10);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7, 3.8, 7));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.1, 0.20, 10);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-13.9, 3.8, 7));
////////////////////////// Zero Floor2
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 5, 1);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-5, 23, -2));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 0.25, 1.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-5, 28.25, -1.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.25, 5.5, 1.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-10.25, 23, -1.5));
sprintf(no_Block, "B1_ZF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 3.5, 5);
mBlocks->SetLineColor(20);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-12.5, 0, -4));
////////////////////////// Ground
sprintf(no_Block, "B1_GRD%d", N = 0);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 29, 1, 0, 36.75);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -2));
sprintf(no_Block, "B1_GRD%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 30.4, 0.4, 36.75, 77.25);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -2.7));
sprintf(no_Block, "B1_GRD%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 29.7, 0.3, 36.75, 77.25);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -2));
sprintf(no_Block, "B1_GRD%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 29, 0.3, 36.75, 77.25);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -1.3));
sprintf(no_Block, "B1_GRD%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 0, 29, 1, 77.25, 97);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -2));
///////////////////////////// Pillars & fences
sprintf(no_Block, "B1_PF%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(29, 4.2, 6, new TGeoRotation("r1", 8.25, 0, 0)));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(24.2, 16.5, 6, new TGeoRotation("r1", 34.25, 0, 0)));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(14.5, 25.4, 6, new TGeoRotation("r1", 60.25, 0, 0)));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(1.9, 29.2, 6, new TGeoRotation("r1", 86.25, 0, 0)));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeTubs(no_Block, Iron, 29, 30, 2, 0, 36.75);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, 0, -1));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 2, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-0.75, 29.3, -1));
sprintf(no_Block, "B1_PF%d", ++N); // 장애인용
mBlocks = geom->MakeBox(no_Block, Iron, 0.25, 4.3, 1.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(6.5, 30.6, -1.5));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.25, 4.3, 0.4);
mBlocks->SetLineColor(10);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(1.125, 30.6, -2.7));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 0.25, 0.75);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(1.125, 34.9, -2.25));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeTrd1(no_Block, Iron, 1.5, 0, 0.25, 5.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(1.125, 34.9, -1.5, new TGeoRotation("r1", 90, -90, 90)));
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// Second Part of Front-Building ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
F = 0;
while (F < nF) {
N = 0;
i = 0;
nW = 7;
while (i < nW) {
sprintf(no_Block, "B12_F%d_B%d", F, ++N); // Wall
mBlocks = geom->MakeBox(no_Block, Iron, 3.8, 0.35, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (21.65 - 6 * i) * 0.13, -21.2 + (21.65 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_B%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 0.3, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (21.0 - 6 * i) * 0.13, -21.2 + (21 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_B%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.8, 0.3, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (20.4 - 6 * i) * 0.13, -21.2 + (20.4 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_B%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 0.3, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (19.7 - 6 * i) * 0.13, -21.2 + (19.7 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_B%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.8, 0.35, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (19.05 - 6 * i) * 0.13, -21.2 + (19.05 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_B%d", F, ++N); // Windows
mBlocks = geom->MakeBox(no_Block, Iron, 3, 1.4, 1.8);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(23.38 + (17.4 - 6 * i) * 0.13, -21.2 + (17.4 - 6 * i) * 0.99,
hP + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
i++;
if (i >= nW) {
sprintf(no_Block, "B12_F%d_B%d", F, ++N); // Wall.
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 1, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(21.4 + (-21) * 0.13, -21 + (-21) * 0.99, hP + (8 * F),
new TGeoRotation("r1", -7.5, 0, 0)));
}
}
sprintf(no_Block, "B12_F%d_B%d", ++F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 22, 2.2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(21.4, -21, hP - 12 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
}
sprintf(no_Block, "B12_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 22, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(21.4, -21, hP - 4.2 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 22, 14);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(18.43, -20.61, 29, new TGeoRotation("r1", -7.5, 0, 0)));
////////////////////// RoofTop
sprintf(no_Block, "B12_RT%d_%d", F, N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 21.75, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(21.43, -20.75, hP - 2 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.23, 21.95, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(26.9, -21.72, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.1, 22, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(27.1, -21.75, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.23, 3.6, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(13.65, -38.03, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.02, 3.8, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(13.3, -38.39, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.7, 0.23, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(18.57, -42.48, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 0.1, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(
mBlocks, 1, new TGeoCombiTrans(18.54, -42.71, hP - 1.7 + (8 * F), new TGeoRotation("r1", -7.5, 0, 0)));
//////////////////////// Pillars & fences
sprintf(no_Block, "B12_PF%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(28.32, -7.44, 6, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(26.75, -19.33, 6, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 9);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(25.19, -31.23, 6, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 11);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(23.75, -42.14, 4, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 11);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(13.84, -40.83, 4, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 15.75, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(27.42, -15.48, -1, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 2, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(24.28, -39.27, -3, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.5, 15.75, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(28.91, -15.68, -4, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_RT%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 0.5, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(18.8, -40.73, -3, new TGeoRotation("r1", -7.5, 0, 0)));
/////////////////////// Stair
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 0.5, 3.25);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(28.33, -31.49, -2.75, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 6.25, 1.625);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(30.56, -37.58, -4.375, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B1_PF%d", ++N);
mBlocks = geom->MakeTrd1(no_Block, Iron, 3.25, 0, 0.5, 6.25);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(30.56, -37.58, -2.75, new TGeoRotation("r1", -7.5, 90, 90)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 3, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(27.37, -34.89, -2.5, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.5, 3, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(27.74, -35.95, -3.5, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.5, 3, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(27.61, -36.94, -4.5, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.5, 3, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1,
new TGeoCombiTrans(27.48, -37.93, -5.5, new TGeoRotation("r1", -7.5, 0, 0)));
//////////////////////// Ground
sprintf(no_Block, "B12_GR%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 21, 1);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(21.53, -20.1, -2, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_GR%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.8, 18, 9);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(12.86, -16.62, 6, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_GR%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 22, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(21.4, -21, 13, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_GR%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 22, 1.95);
mBlocks->SetLineColor(30);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(21.4, -21, 9.05, new TGeoRotation("r1", -7.5, 0, 0)));
sprintf(no_Block, "B12_GR%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.8, 22, 0.05);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoCombiTrans(21.4, -21, 7.05, new TGeoRotation("r1", -7.5, 0, 0)));
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// Bridge-Building ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
F = 1;
N = 0;
nF = 4;
sprintf(no_Block, "B2_F%d", 6);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 17.5, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(12, -17.5, 41));
while (F++ <= nF) {
//////////////////////// Front
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.8, 4, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(10, -4, -5 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 3.5, 1);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.9, -4, -2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 4.5, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.9, -4, -3.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 4, 2.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.9, -4, -6.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.7, 4, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(13.6, -4, -5 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 3.5, 1);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(15.4, -4, -2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 4.5, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(15.4, -4, -3.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.1, 4, 2.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(15.4, -4, -6.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.7, 4, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(17.1, -4, -5 + (F * 8)));
//////////////////////////// Back
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.3, 13.5, 1.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(6.8, -21.5, -2.5 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.3, 14, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(6.8, -21.5, -4.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.3, 13.5, 2.3);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(6.8, -21.5, -6.8 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.7, 13, 1.5);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.8, -21.5, -2.5 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.7, 14, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.8, -21.5, -4.2 + (F * 8)));
sprintf(no_Block, "B2_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.7, 13.5, 2.3);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(11.8, -21.5, -6.8 + (F * 8)));
}
sprintf(no_Block, "B2_F%d_%d", 0, 1);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 13.5, 6);
mBlocks->SetLineColor(30);
// Phy_Building->AddNodeOverlap(mBlocks,1,new TGeoTranslation(10,-21.5,-15));
sprintf(no_Block, "B2_F%d_%d", 0, 2);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 13.5, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(10, -21.5, -5));
sprintf(no_Block, "B2_F%d_%d", 0, 3);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 13.5, 4);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(10, -21.5, 3));
/////////////////////////// RoofTop
sprintf(no_Block, "B2_F%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 17.4, 0.1);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(12, -17.5, 43.1));
sprintf(no_Block, "B2_F%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 0.2, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(9.5, -34.7, 43.5));
sprintf(no_Block, "B2_F%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 0.05, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(9.5, -34.95, 43.5));
sprintf(no_Block, "B2_F%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.75, 0.2, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(13.75, -0.3, 43.5));
sprintf(no_Block, "B2_F%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.55, 0.05, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(13.55, -0.05, 43.5));
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// Building 3 ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
F = 0;
N = 0;
nF = 4;
nW = 6;
sprintf(no_Block, "B3_F0%d", 7);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 36, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 49));
while (F++ < nF) {
i = 0;
N = 0;
sprintf(no_Block, "B3_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4, 36, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 14.7 + (F * 8)));
while (i++ < nW) {
sprintf(no_Block, "B3_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.5, 5, 1.8);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -6 - (i * 12), 12.8 + (F * 8)));
sprintf(no_Block, "B3_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 1, 1.8);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -12 - (i * 12), 12.8 + (F * 8)));
}
sprintf(no_Block, "B3_F%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 36, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 9.2 + (F * 8)));
}
sprintf(no_Block, "B3_F0%d", 1);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 36, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 13));
sprintf(no_Block, "B3_F0%d", 2);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 36, 2);
mBlocks->SetLineColor(30);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 9));
sprintf(no_Block, "B3_F0%d", 3);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 36, 4);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, 3));
sprintf(no_Block, "B3_F0%d", 4);
mBlocks = geom->MakeBox(no_Block, Iron, 2.8, 36, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -48, -5));
/* sprintf(no_Block, "B3_F0%d", 5);
mBlocks = geom->MakeBox(no_Block,Iron,2.8,36,6);
mBlocks->SetLineColor(30);
Phy_Building->AddNodeOverlap(mBlocks,1,new TGeoTranslation(2.4,-48,-15));
*/
sprintf(no_Block, "B3_F0%d", 61);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 8, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -88, 49));
sprintf(no_Block, "B3_F0%d", 62);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 8, 24);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.9, -88, 23));
sprintf(no_Block, "B3_F0%d", 63);
mBlocks = geom->MakeBox(no_Block, Iron, 2, 7, 24);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -88, 23));
sprintf(no_Block, "B3_F0%d", 64);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 8, 24);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-0.1, -88, 23));
sprintf(no_Block, "B3_F0%d", 65);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 8, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -88, -5));
/////////////////////////////// Left-Side
nF = 6;
nW = 6;
sprintf(no_Block, "B3_F2%d", 7);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 40.5, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -43.5, 49));
for (F = 0; F < nF; F++) {
N = 0;
for (i = 0; i < nW; i++) {
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6, 2.35, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -14.35 - (12 * i), 5 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.5, 0.3, 2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -17 - (12 * i), 5 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6, 2.35, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -19.65 - (12 * i), 5 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 1, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -23 - (12 * i), 5 + (8 * F)));
}
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.8, 36, 0.3);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -48, 3.3 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 36, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -48, 1 + (8 * F)));
for (int i = 0; i < 4; i++) {
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.5, 1.4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -3.5, 5.6 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6, 0.7, 1.4);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -4.7, 5.6 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 1.6, 1.4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -7, 5.6 + (8 * F)));
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6, 0.7, 1.4);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -9.3, 5.6 + (8 * F)));
}
sprintf(no_Block, "B3_F2%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 3.5, 2.6);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -6.5, 1.6 + (8 * F)));
}
sprintf(no_Block, "B3_F2%d", 71);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 40.5, 4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -43.5, -5));
sprintf(no_Block, "B3_F2%d", 72);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 2, 30);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -86, 21));
sprintf(no_Block, "B3_F2%d", 73);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 1, 30);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.4, -11, 21));
//////////////////////////////////// Rooftop
sprintf(no_Block, "B3_RT%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 42.25, 0.1);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.15, -45.5, 51.1));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.75, 41.75, 0.1);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -54, 51.1));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.24, 41.99, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5.15, -53.99, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.01, 42, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5.4, -54, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.24, 3.99, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-0.35, -92, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.01, 4, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-0.6, -92, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 2.99, 0.24, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -95.79, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(2.4, -96.04, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.24, 42.49, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-14.14, -45.5, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.01, 42.5, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-14.39, -45.5, 51.5));
/////////////////////// Stair
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6.99, 0.24, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.15, -3.25, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.15, -3, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.25, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.15, -87.74, 51.5));
sprintf(no_Block, "B3_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 7, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-7.15, -87.99, 51.5));
/////////////////////////////// Pillars
N = 0;
for (i = 0; i < 6; i++) {
sprintf(no_Block, "B3_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.2, 1.5, 12);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.6, -12 - (12 * i), 3));
}
sprintf(no_Block, "B3_PF%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 1.5, 40, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(7, -56, -5));
////////////////////////////// Stair
sprintf(no_Block, "B3_ST%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 0.5, 7, 5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-6.5, -88, -2));
for (int i = 0; i < 5; i++) {
sprintf(no_Block, "B3_ST%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3, 5, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3, -86 - (0.7 * i), -2 - (1 * i)));
}
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// Mid-Building ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
////////////////////////////////////// Left-Side
for (int F = 0; F < 5; F++) {
N = 0;
sprintf(no_Block, "B4_LF%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 12.5, 2.3);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -7.5, 9.6 + (8 * F)));
sprintf(no_Block, "B4_LF%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 2, 1.7);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, 3, 13.6 + (8 * F)));
sprintf(no_Block, "B4_LF%d_%d", F, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 10.5, 1.7);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -9.5, 13.6 + (8 * F)));
}
sprintf(no_Block, "B4_LF%d_%d", 9, N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 12.5, 6);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -7.5, 53));
sprintf(no_Block, "B4_LF%d_%d", 9, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 2, 4.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, 3, 3));
sprintf(no_Block, "B4_LF%d_%d", 9, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5, 10.5, 4.5);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -9.5, 3));
sprintf(no_Block, "B4_LF%d_%d", 9, ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 12.5, 5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -7.5, -3));
///////////////////////////////////// Right-Side
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.25, 11, 24);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.25, -9, 19));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.25, 4, 32);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(8.75, 2, 27));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 2, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, 0, 44.8));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 3.5, 5);
mBlocks->SetLineColor(20);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-12.5, 0, -4));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 6, 2, 0.3);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -4, 46.3));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4, 2, 1.5);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -4, 44.5));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 7, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -13, 44.8));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 11, 1.8);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -9, 48.4));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.25, 1.5, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -0, 52.2));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4, 2, 2);
mBlocks->SetLineColor(12);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -4, 52.2));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 7, 2);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -13, 52.2));
sprintf(no_Block, "B4_RS%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 4.5, 11, 2.4);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -9, 56.6));
///////////////////////////////// RoofTop
sprintf(no_Block, "B4_RT%d", N = 0);
mBlocks = geom->MakeBox(no_Block, Iron, 4.25, 10.9, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(4.5, -9, 59));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.25, 12.4, 0.2);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, -7.5, 59));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.24, 12.4, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-8.79, -7.5, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.01, 12.4, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-9.06, -7.5, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.24, 13, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(8.75, -7, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 0.01, 13, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(9, -7, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 8.75, 0.24, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, -19.75, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 8.75, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(0, -20.01, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.25, 0.24, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.5, 4.55, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 5.5, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(-3.75, 5.1, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.5, 0.24, 0.5);
mBlocks->SetLineColor(18);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5, 1.55, 59.3));
sprintf(no_Block, "B4_RT%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 3.5, 0.01, 0.5);
mBlocks->SetLineColor(2);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5, 2.1, 59.3));
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//////////////////////////////// GROUND ///////////////////////////////
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
sprintf(no_Block, "GRD%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 40, 90, 2);
mBlocks->SetLineColor(30);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5, -20, -9));
sprintf(no_Block, "GRD%d", ++N);
mBlocks = geom->MakeBox(no_Block, Iron, 30, 30, 2);
mBlocks->SetLineColor(41);
Phy_Building->AddNodeOverlap(mBlocks, 1, new TGeoTranslation(5, 30, -5));
geom->CloseGeometry();
////////////////////////// Draw
Phy_Building->SetVisibility(false);
Phy_Building->Draw("ogl");
}
N
#define N
TGeoCombiTrans
Class describing rotation + translation.
Definition TGeoMatrix.h:318
TGeoManager
The manager class for any TGeo geometry.
Definition TGeoManager.h:46
TGeoManager::CloseGeometry
void CloseGeometry(Option_t *option="d")
Closing geometry implies checking the geometry validity, fixing shapes with negative parameters (run-...
Definition TGeoManager.cxx:1503
TGeoManager::MakeBox
TGeoVolume * MakeBox(const char *name, TGeoMedium *medium, Double_t dx, Double_t dy, Double_t dz)
Make in one step a volume pointing to a box shape with given medium.
Definition TGeoManager.cxx:3208
TGeoManager::MakeTrd1
TGeoVolume * MakeTrd1(const char *name, TGeoMedium *medium, Double_t dx1, Double_t dx2, Double_t dy, Double_t dz)
Make in one step a volume pointing to a TGeoTrd1 shape with given medium.
Definition TGeoManager.cxx:3332
TGeoManager::SetTopVolume
void SetTopVolume(TGeoVolume *vol)
Set the top volume and corresponding node as starting point of the geometry.
Definition TGeoManager.cxx:3708
TGeoManager::SetTopVisible
void SetTopVisible(Bool_t vis=kTRUE)
make top volume visible on screen
Definition TGeoManager.cxx:2407
TGeoManager::MakeTubs
TGeoVolume * MakeTubs(const char *name, TGeoMedium *medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2)
Make in one step a volume pointing to a tube segment shape with given medium.
Definition TGeoManager.cxx:3252
TGeoMaterial
Base class describing materials.
Definition TGeoMaterial.h:34
TGeoMedium
Media are used to store properties related to tracking and which are useful only when using geometry ...
Definition TGeoMedium.h:23
TGeoRotation
Class describing rotations.
Definition TGeoMatrix.h:169
TGeoTranslation
Class describing translations.
Definition TGeoMatrix.h:117
TGeoVolume
TGeoVolume, TGeoVolumeMulti, TGeoVolumeAssembly are the volume classes.
Definition TGeoVolume.h:43
TGeoVolume::SetVisibility
void SetVisibility(Bool_t vis=kTRUE) override
set visibility of this volume
Definition TGeoVolume.cxx:2467
TGeoVolume::Draw
void Draw(Option_t *option="") override
draw top volume according to option
Definition TGeoVolume.cxx:1326
TGeoVolume::AddNodeOverlap
virtual void AddNodeOverlap(TGeoVolume *vol, Int_t copy_no, TGeoMatrix *mat=nullptr, Option_t *option="")
Add a TGeoNode to the list of nodes.
Definition TGeoVolume.cxx:1164
TGeoVolume::SetLineColor
void SetLineColor(Color_t lcolor) override
Set the line color.
Definition TGeoVolume.cxx:2289
F
#define F(x, y, z)
Author
Hyung Ju Lee (lacca.nosp@m.lus@.nosp@m.nate..nosp@m.com), Dept. of Physics, Univ. of Seoul

Definition in file building.C.
