TestNonCentral.C File Reference

Detailed Description

Demonstrates non central chi-square.

[#0] WARNING:InputArguments -- The parameter 'x' with range [0, 50] of the RooChiSquarePdf 'cs' exceeds the safe range of (0, inf). Advise to limit its range.
[#0] WARNING:InputArguments -- The parameter 'k' with range [0, 5] of the RooChiSquarePdf 'cs' exceeds the safe range of (0, inf). Advise to limit its range.
[#1] INFO:InputArguments -- RooNonCentralChiSquare sum being forced
[#0] WARNING:Eval -- RooNonCentralChiSquare did not converge: for x=36 k=2.01, lambda=5 fractional error = 0.00108172
 either adjust tolerance with SetErrorTolerance(tol) or max_iter with SetMaxIter(max_it)


using namespace RooFit;
void TestNonCentral()
{

   RooWorkspace w("w");
   // k <2, must use sum
   w.factory("NonCentralChiSquare::nc(x[0,50],k[1.99,0,5],lambda[5])");
   // kk > 2 can use bessel
   w.factory("NonCentralChiSquare::ncc(x,kk[2.01,0,5],lambda)");
   // kk > 2, force sum
   w.factory("NonCentralChiSquare::nccc(x,kk,lambda)");
   ((RooNonCentralChiSquare *)w.pdf("nccc"))->SetForceSum(true);

   // a normal "central" chi-square for comparison when lambda->0
   w.factory("ChiSquarePdf::cs(x,k)");

   // w.var("kk")->setVal(4.); // test a large kk

   std::unique_ptr<RooDataSet> ncdata{w.pdf("nc")->generate(*w.var("x"), 100)};
   std::unique_ptr<RooDataSet> csdata{w.pdf("cs")->generate(*w.var("x"), 100)};

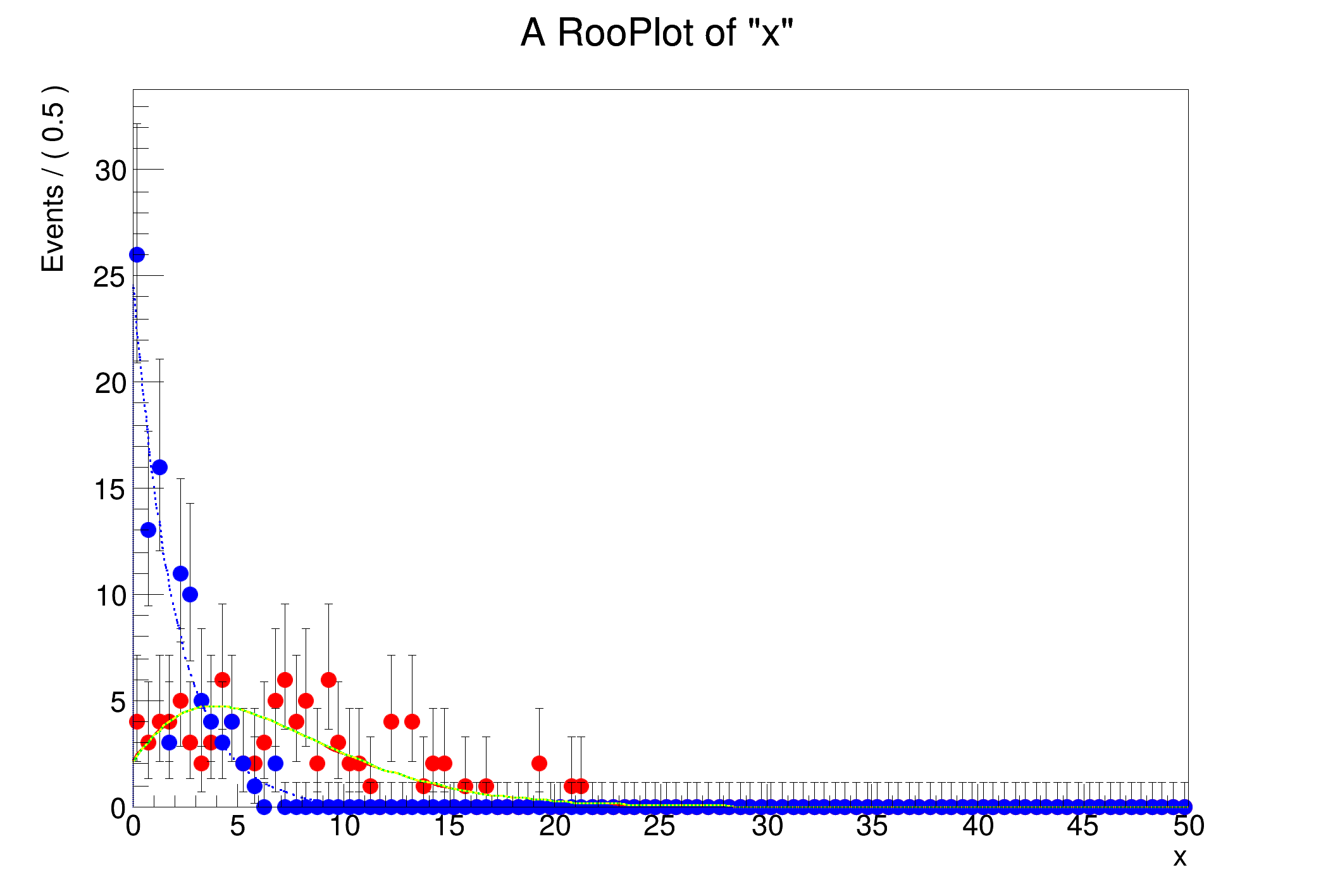

   RooPlot *plot = w.var("x")->frame();
   ncdata->plotOn(plot, MarkerColor(kRed));
   csdata->plotOn(plot, MarkerColor(kBlue));
   w.pdf("nc")->plotOn(plot, LineColor(kRed));
   w.pdf("ncc")->plotOn(plot, LineColor(kGreen));
   w.pdf("nccc")->plotOn(plot, LineColor(kYellow), LineStyle(kDashed));
   w.pdf("cs")->plotOn(plot, LineColor(kBlue), LineStyle(kDotted));
   plot->Draw();
}

Author

Lorenzo Moneta

Definition in file TestNonCentral.C.
