Hi Ivana,
This is probably due to a bug that I have fixed few weeks ago - this was
altering the matrices of the current tracked geometry branch. It was
squite severe and I introduced it few moths ago when trying to optimize
TGeoCache class. This is fixed in 4.00-04 and we forgot to notify the
VMC list to update TGeo. Please do so.

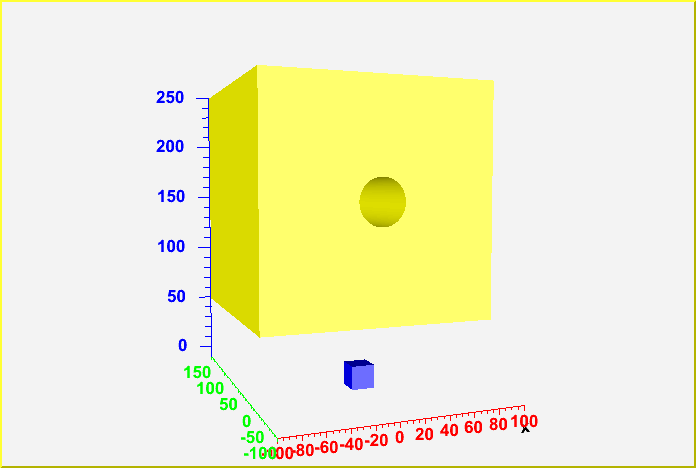

I attached the picture for your composite shape made with 4-04 and the
translation t1 is taken correctly into account.
Best regards,
Andrei
Ivana Hrivnacova wrote:
> Hi Andrei,
>
> I attached a macro, where I don't understand
> if I do something wrong or a if the problem is in Root.
>
> It seems to me that when I define the composite shape
> in this way, the t1 translation is not taken into account:
> TGeoCompositeShape* cs
> = new TGeoCompositeShape("cs", "B:t1-T:r2");
> The picture is the same as for "B-T:r2."
>
> When applying it to the T volume, it works as expected.
>
> Could you have a look, please, and let me know?
> I did this test with Root 4.00/03.
>
> Thank you,
>
> Ivana
>
>
>
>------------------------------------------------------------------------
>
>void macrox()
>{
>// Example with displacement applied namely on left solid
>// ---
>
> gSystem->Load("libGeom");
> new TGeoManager("Geom", "composite shape example");
>
> // Define some material
> TGeoMaterial* material = new TGeoMaterial("Al", 26.98, 13, 2.7);
> TGeoMedium* medium = new TGeoMedium("Medium", 1, material);
>
> const Double_t sq2 = TMath::Sqrt(2.);
> TGeoVolume* top = gGeoManager->MakeBox("TOP", medium, 300., 300., 300.);
> gGeoManager->SetTopVolume(top);
>
> // Add a small box in the middle
> //
> TGeoShape* solid
> = new TGeoBBox("SB", 10., 10, 10);
> TGeoVolume* volume1
> = new TGeoVolume("volume1", solid,medium);
> top->AddNode(volume1, 1, new TGeoTranslation(0., 0., 0.));
> volume1->SetLineColor(4);
>
>
> // Make shape componenets
> //
> new TGeoBBox("B", 100., 100, 100);
> new TGeoTube("T", 0., 20., 100.) ;
>
> // Define rotations
> //
> TGeoTranslation* t1 = new TGeoTranslation("t1", 0., 50., 0);
> t1->RegisterYourself();
> TGeoTranslation* t2 = new TGeoTranslation("t2", 0., -50., 0);
> t2->RegisterYourself();
> TGeoTranslation* t3 = new TGeoTranslation("t3", 150., 0., 0);
> t3->RegisterYourself();
>
> TGeoRotation* r1 = new TGeoRotation();
> r1->RotateZ(45.);
> r1->SetName("r1");
> r1->RegisterYourself();
>
> TGeoRotation* r2 = new TGeoRotation();
> r2->RotateX(90.);
> r2->SetName("r2");
> r2->RegisterYourself();
>
> TGeoCombiTrans* tc1 = new TGeoCombiTrans("tc1", -150., 0., 0, r1);
> tc1->RegisterYourself();
> TGeoCombiTrans* tc2 = new TGeoCombiTrans("tc2", 0., -50., 0., r1);
> tc2->RegisterYourself();
>
> // Create composite shape
> //
> //TGeoCompositeShape* cs
> // = new TGeoCompositeShape("cs", "((B:t1-T):tc1+(B:t2-T):t3");
>
> TGeoCompositeShape* cs
> = new TGeoCompositeShape("cs", "B:t1-T:r2");
> // t1 shift in y not seen
>
> //TGeoCompositeShape* cs
> // = new TGeoCompositeShape("cs", "B-T:tc2");
> // // if traslation applied to T ok
>
> TGeoVolume* comp = new TGeoVolume("COMP", cs, medium);
> comp->SetLineColor(5);
>
> top->AddNode(comp, 1, new TGeoTranslation(0, 0, 150.));
> gGeoManager->CloseGeometry();
>
> top->Raytrace();
>
> gGeoManager->Export("geometry.root");
>}
>
>
