Hi Matt,
I do not see any problems with your class. I created two files
//file ThresholdCurve.h
#include "TGraph.h"
class ThresholdCurve:public TGraph {
public:
bool calib; // Threshold calibrated?
bool ismod; // Is it a module?
int id; // Module (or plane if a plane) id
ThresholdCurve() {id = 0; calib = true; ismod = true;}
virtual ~ThresholdCurve() {}
void SetCalib(bool c = true) { calib = c;}
bool GetCalib() {return calib;}
void SetId(int i) {id = i;}
int GetId() {return id;}
void SetIsMod(bool m) {ismod = m;}
bool GetIsMod() {return ismod;}
ClassDef(ThresholdCurve, 1)
};
and
//ThresholdCurve.cxx
#include "ThresholdCurve.h"
ClassImp(ThresholdCurve)
then ran the following Root session without problems
root > .L ThresholdCurve.cxx++
root > t = new ThresholdCurve
root > t->Inspect()

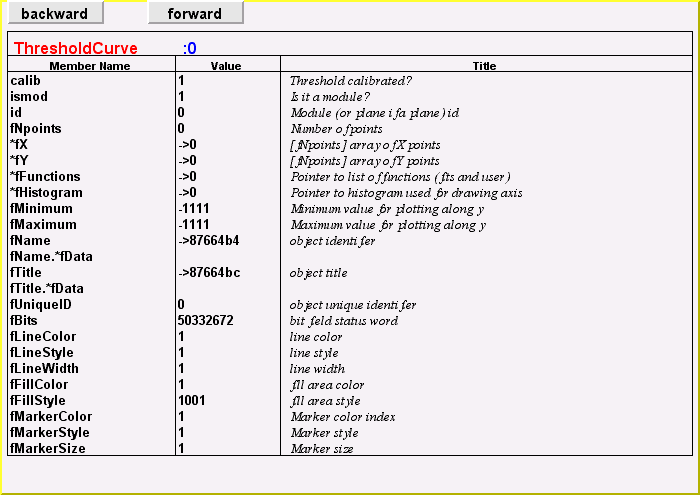

and I get the Inspect canvas from which i produce the inspect.gif file
in the attachement.
Rene Brun
On Fri, 16 Aug 2002, Matt Palmer wrote:
> Hi,
> I have a very bizarre problem:
> I have a class which derives from TGraph:
> class ThresholdCurve:public TGraph {
> public:
> bool calib; // Threshold calibrated?
> bool ismod; // Is it a module?
> int id; // Module (or plane if a plane) id
> ThresholdCurve() {id = 0; calib = true; ismod = true;}
> virtual ~ThresholdCurve() {}
> void SetCalib(bool c = true) { calib = c;}
> bool GetCalib() {return calib;}
> void SetId(int i) {id = i;}
> int GetId() {return id;}
> void SetIsMod(bool m) {ismod = m;}
> bool GetIsMod() {return ismod;}
> ClassDef(ThresholdCurve, 1)
> };
>
> The ClassImp macro is in the .cpp file
>
> I compile this as part of a shared object library and load it into root:
>
> *******************************************
> * *
> * W E L C O M E to R O O T *
> * *
> * Version 3.03/07 6 August 2002 *
> * *
> * You are welcome to visit our Web site *
> * http://root.cern.ch *
> * *
> *******************************************
>
> FreeType Engine v1.x used to render TrueType fonts.
> Compiled for linuxicc with thread support.
>
> CINT/ROOT C/C++ Interpreter version 5.15.51, July 19 2002
> Type ? for help. Commands must be C++ statements.
> Enclose multiple statements between { }.
> root [0] .L libTB2001.so
> root [1] t = new ThresholdCurve
> (class ThresholdCurve*)0x87dea38
> root [2] gDebug = 1000
> (const int)1000
> root [3] t->Inspect()
> SetTextSize: -1.000000
>
> *** Break *** segmentation violation
> Root > SetTextSize: -1.000000
>
> And as you can see, there is a seg violation. If I change the inheritance to:
> class ThresholdCurve: TNamed {
> //as above
> };
>
> Then it works fine
> Changing it again to:
> class ThresholdCurve: TNamed, TAttFill {
> //as above
> };
> gives the same error as above. Does anyone have any idea what might be
> wrong? I suspect that it is something to do with the multiple inheritance
> from classes that don't derive from TObject, but I couldn't see anything
> special in the TGraph class to make it work.
>
> Thanks
> Matt
>
