rf109_chi2residpull.C File Reference

Detailed Description

'BASIC FUNCTIONALITY' RooFit tutorial macro #109

Calculating chi^2 from histograms and curves in RooPlots, making histogram of residual and pull distributions

Processing /mnt/build/workspace/root-makedoc-v612/rootspi/rdoc/src/v6-12-00-patches/tutorials/roofit/rf109_chi2residpull.C...

RooFit v3.60 -- Developed by Wouter Verkerke and David Kirkby
                Copyright (C) 2000-2013 NIKHEF, University of California & Stanford University
                All rights reserved, please read http://roofit.sourceforge.net/license.txt

chi^2 = 2.63198

#include "RooRealVar.h"
#include "RooDataSet.h"
#include "RooGaussian.h"
#include "RooConstVar.h"
#include "TCanvas.h"
#include "TAxis.h"
#include "RooPlot.h"
#include "RooHist.h"
using namespace RooFit ;


void rf109_chi2residpull()
{

   // S e t u p   m o d e l
   // ---------------------

   // Create observables
   RooRealVar x("x","x",-10,10) ;

   // Create Gaussian
   RooRealVar sigma("sigma","sigma",3,0.1,10) ;
   RooRealVar mean("mean","mean",0,-10,10) ;
   RooGaussian gauss("gauss","gauss",x,RooConst(0),sigma) ;

   // Generate a sample of 1000 events with sigma=3
   RooDataSet* data = gauss.generate(x,10000) ;

   // Change sigma to 3.15
   sigma=3.15 ;


   // P l o t   d a t a   a n d   s l i g h t l y   d i s t o r t e d   m o d e l
   // ---------------------------------------------------------------------------

   // Overlay projection of gauss with sigma=3.15 on data with sigma=3.0
   RooPlot* frame1 = x.frame(Title("Data with distorted Gaussian pdf"),Bins(40)) ;
   data->plotOn(frame1,DataError(RooAbsData::SumW2)) ;
   gauss.plotOn(frame1) ;


   // C a l c u l a t e   c h i ^ 2
   // ------------------------------

   // Show the chi^2 of the curve w.r.t. the histogram
   // If multiple curves or datasets live in the frame you can specify
   // the name of the relevant curve and/or dataset in chiSquare()
   cout << "chi^2 = " << frame1->chiSquare() << endl ;


   // S h o w   r e s i d u a l   a n d   p u l l   d i s t s
   // -------------------------------------------------------

   // Construct a histogram with the residuals of the data w.r.t. the curve
   RooHist* hresid = frame1->residHist() ;

   // Construct a histogram with the pulls of the data w.r.t the curve
   RooHist* hpull = frame1->pullHist() ;

   // Create a new frame to draw the residual distribution and add the distribution to the frame

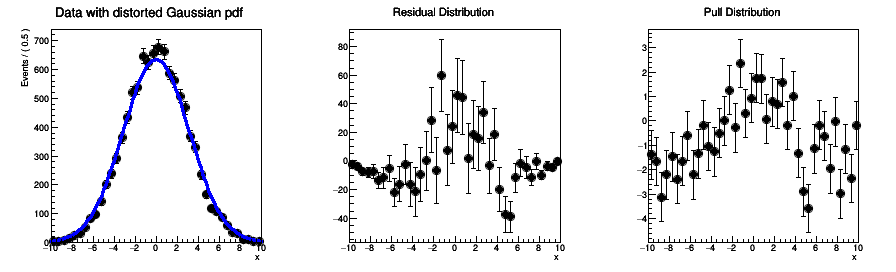

   RooPlot* frame2 = x.frame(Title("Residual Distribution")) ;
   frame2->addPlotable(hresid,"P") ;

   // Create a new frame to draw the pull distribution and add the distribution to the frame
   RooPlot* frame3 = x.frame(Title("Pull Distribution")) ;
   frame3->addPlotable(hpull,"P") ;



   TCanvas* c = new TCanvas("rf109_chi2residpull","rf109_chi2residpull",900,300) ;
   c->Divide(3) ;
   c->cd(1) ; gPad->SetLeftMargin(0.15) ; frame1->GetYaxis()->SetTitleOffset(1.6) ; frame1->Draw() ;
   c->cd(2) ; gPad->SetLeftMargin(0.15) ; frame2->GetYaxis()->SetTitleOffset(1.6) ; frame2->Draw() ;
   c->cd(3) ; gPad->SetLeftMargin(0.15) ; frame3->GetYaxis()->SetTitleOffset(1.6) ; frame3->Draw() ;

}

Author

07/2008 - Wouter Verkerke
